Compact Country House Plan 5327U13

Introducing the stunning Compact Country House Plan 5327U13 – a charming one-story home that combines functionality and style. With an open living room and kitchen layout, this home boasts a spacious and welcoming atmosphere perfect for entertaining guests or spending quality time with loved ones.

The living room features large windows that let in plenty of natural light and create a warm and inviting ambiance. The kitchen has modern appliances and ample counter space, making preparing meals and hosting dinner parties easy.

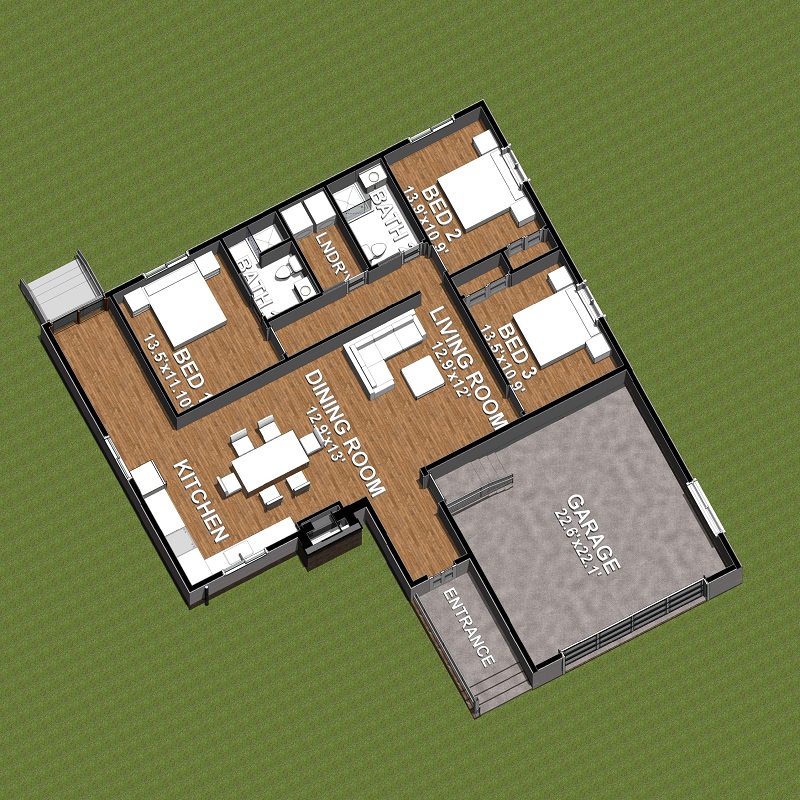

The house features three bedrooms, providing plenty of space for families or guests. The master bedroom includes an en-suite bathroom and a walk-in closet, offering a luxurious retreat for homeowners. The other two bedrooms share a bathroom, making it convenient for everyone.

The laundry room is located in a practical spot, making it easy to manage laundry while still having access to all the amenities. Additionally, the two-car garage provides ample space for cars and additional storage.

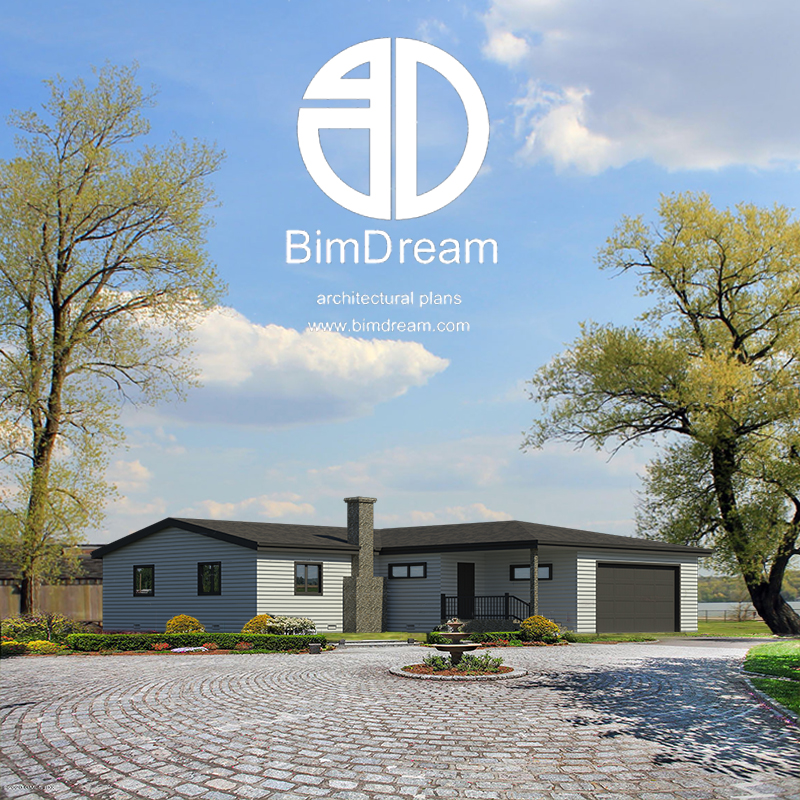

This home’s exterior exudes timeless beauty with its classic country-style design, perfect for those who love a cozy and inviting look. The house plan is compact yet spacious, making it an ideal choice for anyone looking for a comfortable and functional single-story home. Whether you’re a small family or a couple, the Compact Country House Plan 5327U13 is a perfect choice for your dream home.

A country house is a versatile asset, offering a peaceful escape from city life, opportunities for recreation, and privacy. Whether as a vacation home, a place to connect with nature, or engage in agricultural pursuits, it provides a healthier and less stressful lifestyle. In essence, a country house offers tranquility, leisure, and various lifestyle benefits.

What is included in each Set option?

Initial PDF, Initial BIM Set or Initial CAD Set content:

• 3D Model (BIM) of the house. It has all main elements modeled - levels, walls, doors, windows, floors, furniture, etc. (for the Initial BIM Set only).

• Cover sheet with camera view of the house and a sheet list

• Floor plans (including basement where applicable), scale 1/4"=1'-0": dimensioned plans showing all main elements of the house - walls, floors, stair (where applicable), windows, doors, furniture, plumbing fixtures, etc.

• Roof plan, scale 1/4"=1'-0": dimensioned plan showing all roof slopes, gutters, eaves, skylights, exterior wall outline below, etc.

• Four exterior elevations, scale 1/4"=1'-0": showing all levels, eave lengths, roof slopes, doors and windows, etc.

• At least two Building Sections, scale 1/4"=1'-0": showing all levels, walls, floors, stair, roof slopes, eave lengths, doors and windows, etc.

Planning PDF, Planning BIM Set or Planning CAD Set content:

• 3D Model (BIM) of the house. It has all main elements modeled - levels, walls, doors, windows, floors, furniture, etc. (for the Initial BIM Set only).

• Cover sheet :

• Floor plans (including basement where applicable), scale 1/4"=1'-0": dimensioned plans showing all main elements of the house - walls, floors, stair (where applicable), windows, doors, furniture, plumbing fixtures, etc. These sheets also include a floor plan legend and notes as well as the main structural elements of the house.

• Roof plan, scale 1/4"=1'-0": dimensioned plan showing all roof slopes and materials, gutters, eaves, skylights, exterior wall outline below, etc. These sheets also include a roof plan legend and notes.

• At least two Building Sections, scale 1/4"=1'-0": showing all levels, walls, floors, stair, roof slopes, eave lengths, door and window locations, etc. These sheets also include a building legend and notes as well as the main structural elements of the house.

• Four exterior elevations, scale 1/4"=1'-0": showing all levels, exterior materials, eave lengths, roof slopes, door and window locations, etc. These sheets also include a elevation legend and notes.

What is NOT included:

• Architectural or Engineering Stamps
• General notes, City Notes
• Wall, Floor, Ceiling and Roof Assemblies
• Site Plan
• Mechanical and Plumbing
• Energy Calculations
• Structural Calculations and Plans
• Finish Floor Plans and Schedules
• Door and window schedules and types
• Light fixture, Accessories, Equipment and Plumbing Schedules
• Casework and millwork schedules and types
• Exterior, Interior, Window and Door Details

Design PDF, Design BIM Model or Design CAD Model content:

What is NOT included:

• Site Plan - has to be handled locally
• Architectural or Engineering Stamps - have to be handled locally
• Mechanical and Plumbing Drawings - have to be handled by your subcontractors
• Energy calculations - have to be handled locally if required
• Structural Calculations - have to be handled locally
• Framing Plans and details - have to be handled locally
• Wall, Floor, Ceiling and Roof assemblies
• Finish Floor Plans and Schedules
• City Notes
• Details

Construction PDF, Construction BIM Model or Construction CAD Model content:

How will I receive my ordered products?
Electronic delivery: URL for downloading the files will be provided after completing the purchase and approving the payment. Normally approving the payment takes 1-3 minutes. Order the product, complete the payment, wait few minutes and then go to My Account > Orders or click here to view your order. Verify that your order status is completed and then click "VIEW" to open the order details and download the purchased product. As well you will receive the download URL on your email address when your payment is approved.
