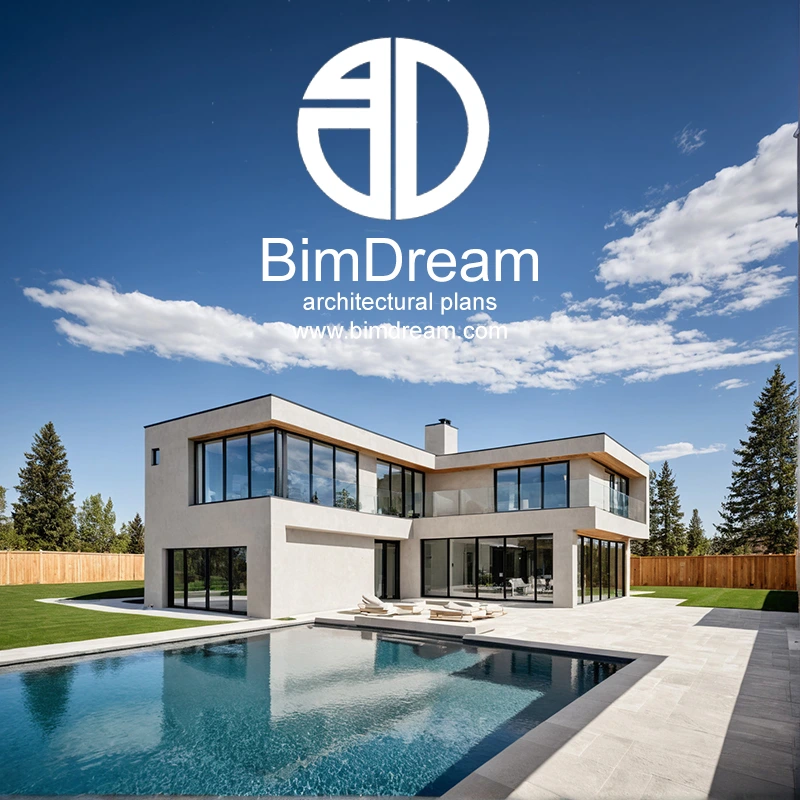

This stunning two-story Modern 4283R37 House Plan is a perfect blend of elegance and functionality, designed to cater to the needs of a large and happy family. The facade boasts a contemporary aesthetic with light stucco walls, a sleek flat roof, and expansive windows that flood the interiors with natural light. The house’s exterior is a true statement of modern architecture, offering a visually appealing yet practical design.

Upon arrival, guests are greeted by a beautifully landscaped front yard featuring a luxurious pool and a dedicated barbecue area, ideal for outdoor gatherings and relaxation. The well-planned outdoor space enhances the home’s appeal, making it perfect for entertaining or enjoying peaceful evenings with family.

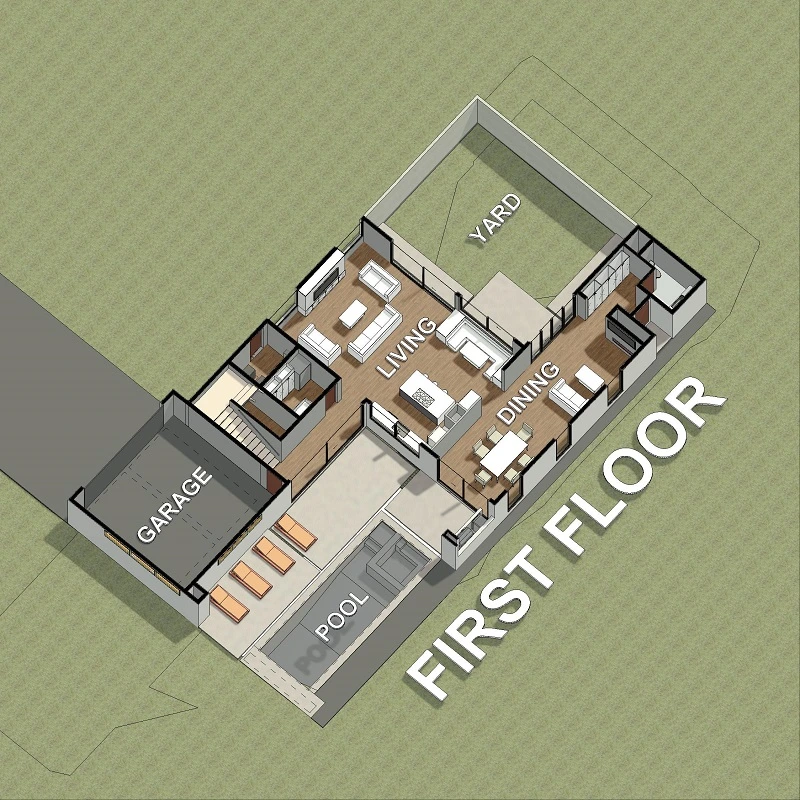

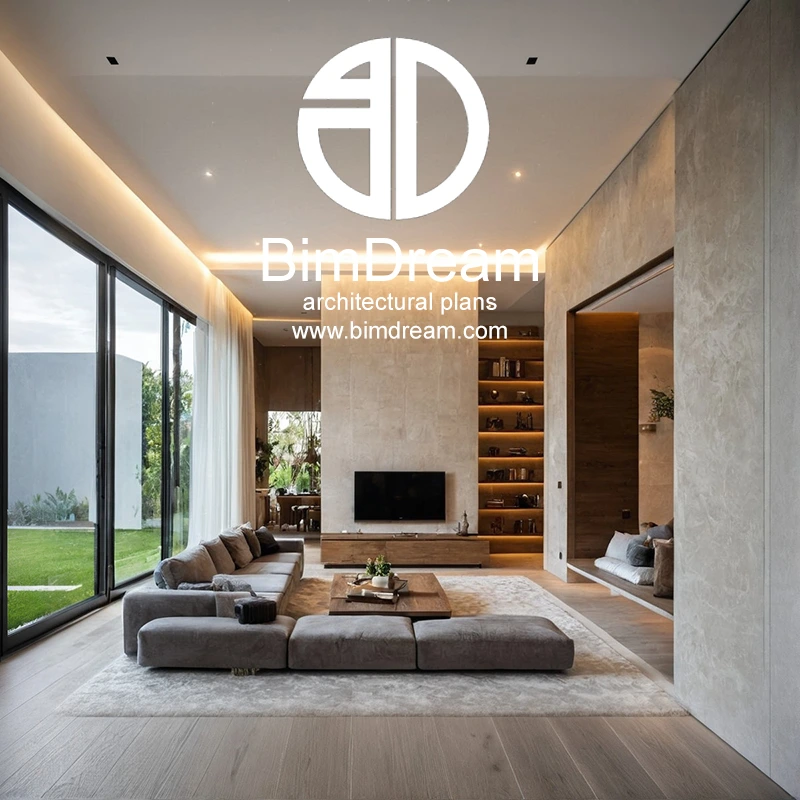

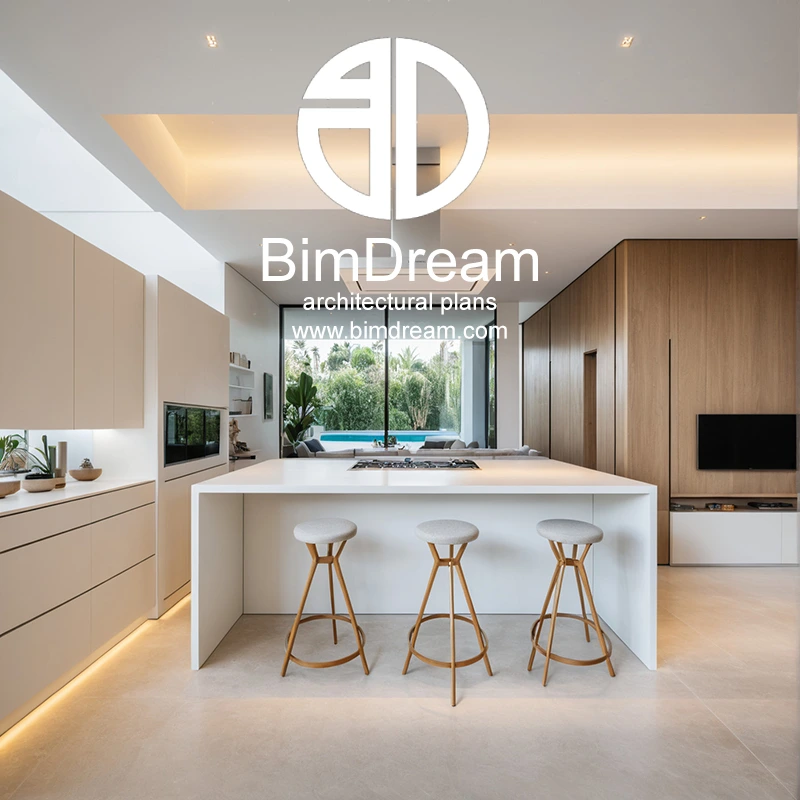

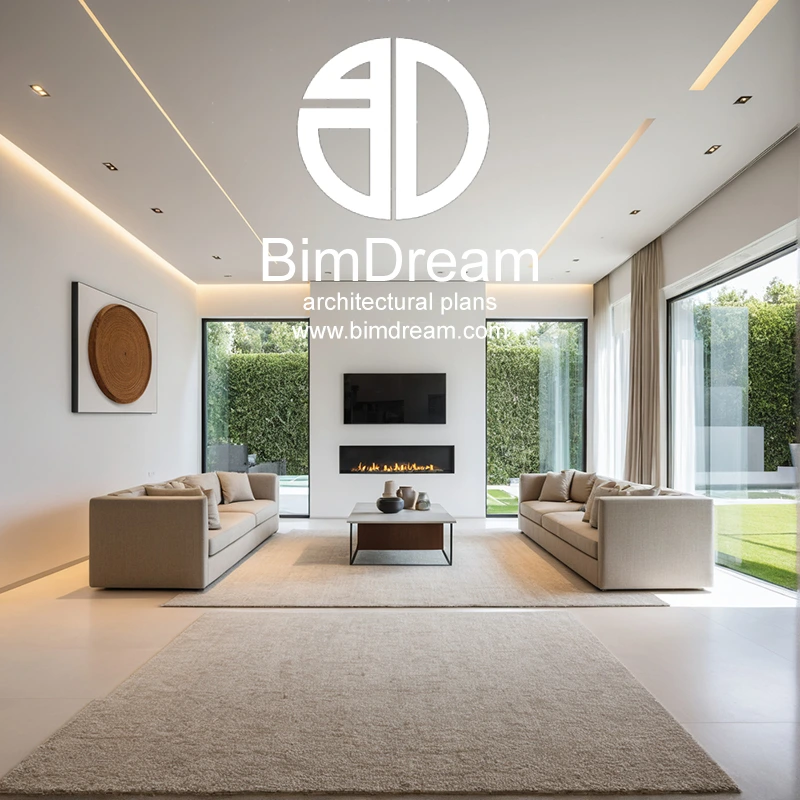

Stepping inside, the first floor seamlessly combines style and functionality. The open-concept layout connects the kitchen, dining, and living areas, creating a spacious and inviting environment. The modern kitchen is equipped with high-end appliances, sleek cabinetry, and a large island, making meal preparation both efficient and enjoyable. The adjacent dining area is perfect for family dinners, while the cozy living room provides a comfortable space to unwind. Additionally, this floor includes a two-car garage, ensuring ample storage and convenience for homeowners.

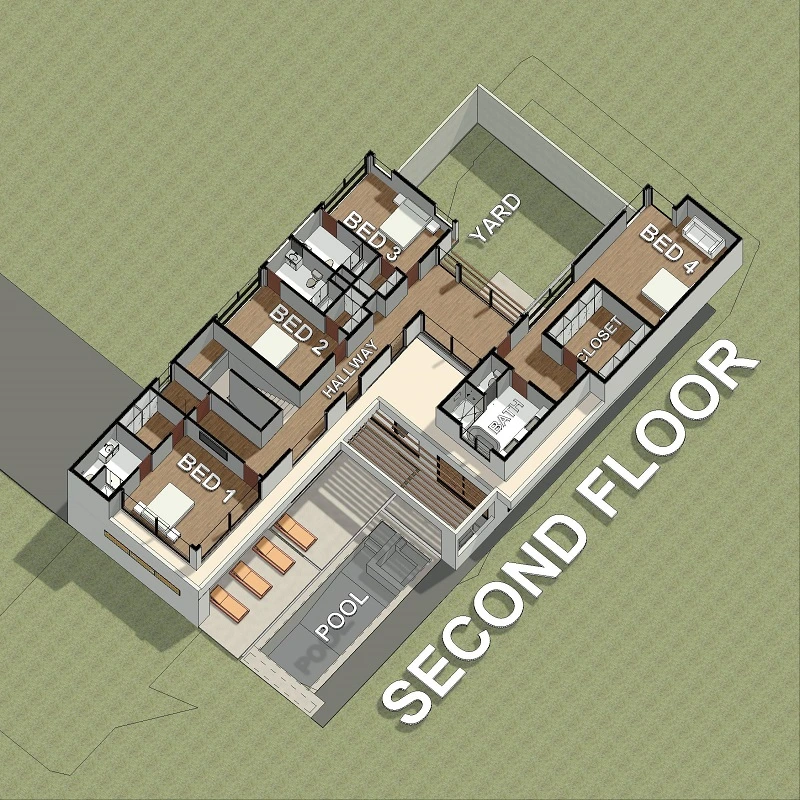

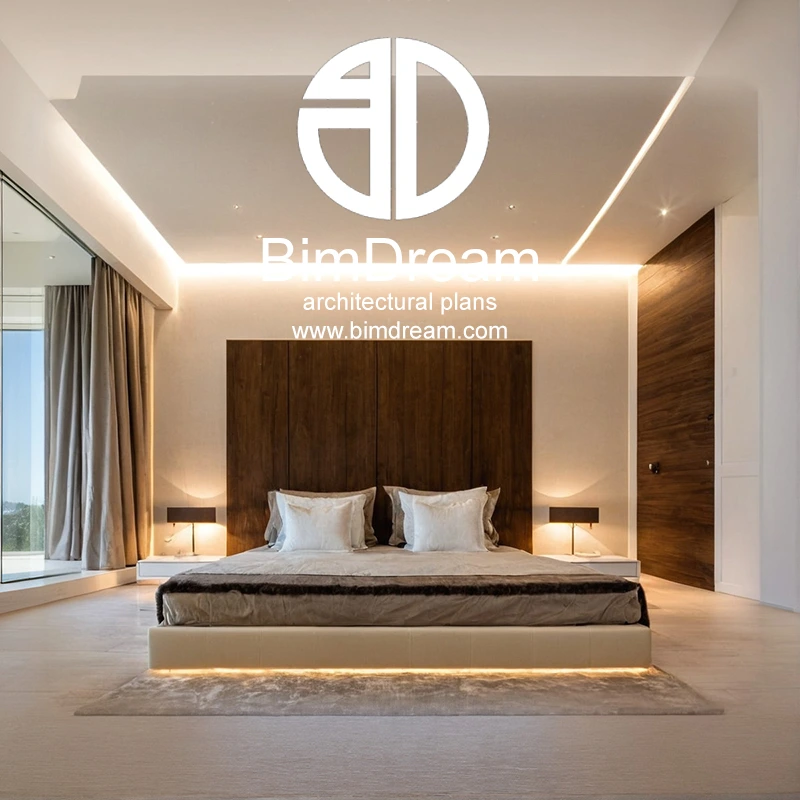

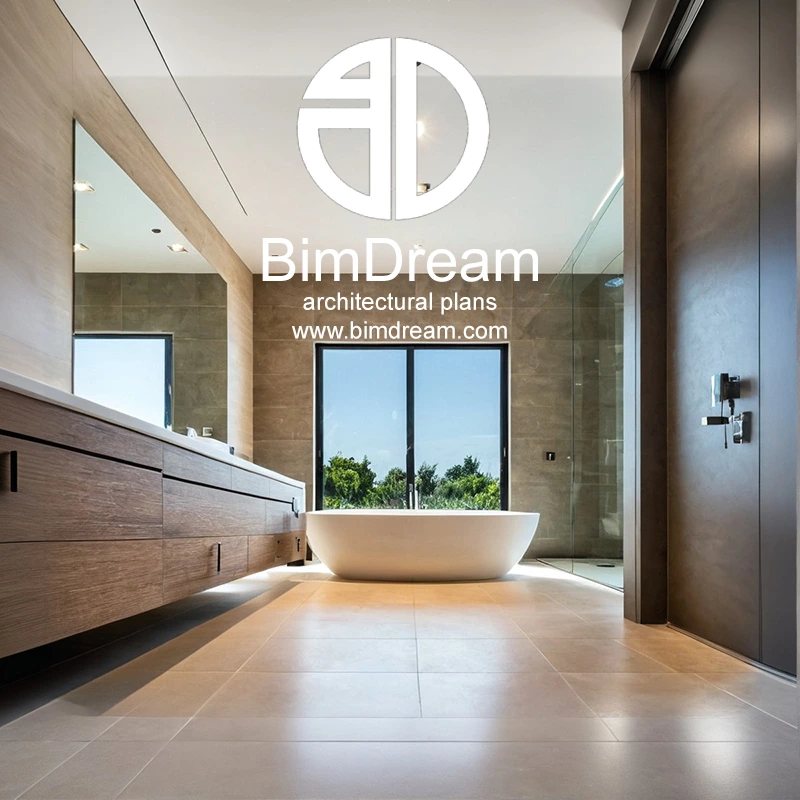

Ascending to the second floor, the private quarters offer a retreat-like ambiance. Four generously sized bedrooms are thoughtfully arranged, each featuring its own en-suite bathroom, providing comfort and privacy for all family members. The master suite stands out with its luxurious amenities, including a walk-in closet and a spa-like bathroom with a soaking tub and dual vanities.

Designed with modern lifestyles in mind, this two-story home embodies elegance, efficiency, and comfort. Whether for daily living or hosting gatherings, this house meets every need, making it the perfect sanctuary for a growing family.

What is included in each Set option?

Initial PDF, Initial BIM Set or Initial CAD Set content:

• 3D Model (BIM) of the house. It has all main elements modeled - levels, walls, doors, windows, floors, furniture, etc. (for the Initial BIM Set only).

• Cover sheet with camera view of the house and a sheet list

• Floor plans (including basement where applicable), scale 1/4"=1'-0": dimensioned plans showing all main elements of the house - walls, floors, stair (where applicable), windows, doors, furniture, plumbing fixtures, etc.

• Roof plan, scale 1/4"=1'-0": dimensioned plan showing all roof slopes, gutters, eaves, skylights, exterior wall outline below, etc.

• Four exterior elevations, scale 1/4"=1'-0": showing all levels, eave lengths, roof slopes, doors and windows, etc.

• At least two Building Sections, scale 1/4"=1'-0": showing all levels, walls, floors, stair, roof slopes, eave lengths, doors and windows, etc.

Planning PDF, Planning BIM Set or Planning CAD Set content:

• 3D Model (BIM) of the house. It has all main elements modeled - levels, walls, doors, windows, floors, furniture, etc. (for the Initial BIM Set only).

• Cover sheet :

• Floor plans (including basement where applicable), scale 1/4"=1'-0": dimensioned plans showing all main elements of the house - walls, floors, stair (where applicable), windows, doors, furniture, plumbing fixtures, etc. These sheets also include a floor plan legend and notes as well as the main structural elements of the house.

• Roof plan, scale 1/4"=1'-0": dimensioned plan showing all roof slopes and materials, gutters, eaves, skylights, exterior wall outline below, etc. These sheets also include a roof plan legend and notes.

• At least two Building Sections, scale 1/4"=1'-0": showing all levels, walls, floors, stair, roof slopes, eave lengths, door and window locations, etc. These sheets also include a building legend and notes as well as the main structural elements of the house.

• Four exterior elevations, scale 1/4"=1'-0": showing all levels, exterior materials, eave lengths, roof slopes, door and window locations, etc. These sheets also include a elevation legend and notes.

What is NOT included:

• Architectural or Engineering Stamps
• General notes, City Notes
• Wall, Floor, Ceiling and Roof Assemblies
• Site Plan
• Mechanical and Plumbing
• Energy Calculations
• Structural Calculations and Plans
• Finish Floor Plans and Schedules
• Door and window schedules and types
• Light fixture, Accessories, Equipment and Plumbing Schedules
• Casework and millwork schedules and types
• Exterior, Interior, Window and Door Details

Design PDF, Design BIM Model or Design CAD Model content:

What is NOT included:

• Site Plan - has to be handled locally
• Architectural or Engineering Stamps - have to be handled locally
• Mechanical and Plumbing Drawings - have to be handled by your subcontractors
• Energy calculations - have to be handled locally if required
• Structural Calculations - have to be handled locally
• Framing Plans and details - have to be handled locally
• Wall, Floor, Ceiling and Roof assemblies
• Finish Floor Plans and Schedules
• City Notes
• Details

Construction PDF, Construction BIM Model or Construction CAD Model content:

How will I receive my ordered products?
Electronic delivery: URL for downloading the files will be provided after completing the purchase and approving the payment. Normally approving the payment takes 1-3 minutes. Order the product, complete the payment, wait few minutes and then go to My Account > Orders or click here to view your order. Verify that your order status is completed and then click "VIEW" to open the order details and download the purchased product. As well you will receive the download URL on your email address when your payment is approved.
