Modern Victorian House Plan 4583T73

Welcome to the exquisite Modern Victorian House Plan 4583T73, a residence that marries the charm of Victorian architecture with modern design sensibilities. The exterior of this home is a true masterpiece, featuring an alluring main entrance adorned with decorative wood accents, setting the tone for the elegance that awaits within.

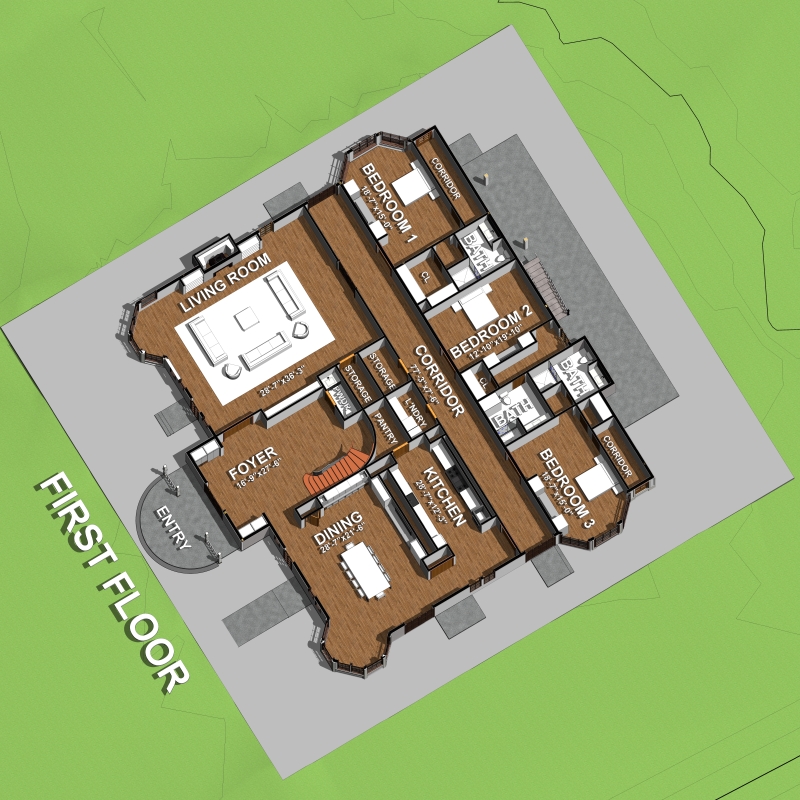

As you step inside, the well-thought-out floor plan unfolds. The grand foyer greets you with round decorative stairs and a beautiful arched opening that leads to the living room, where a cozy fireplace warms the space, creating an inviting atmosphere.

Turning to the right, you’ll discover a spacious family room, perfect for gatherings and engaging conversations.

Moving to the back of the first floor, three generously sized bedrooms, each boasting private baths, await, ensuring complete privacy and relaxation for your family and guests.

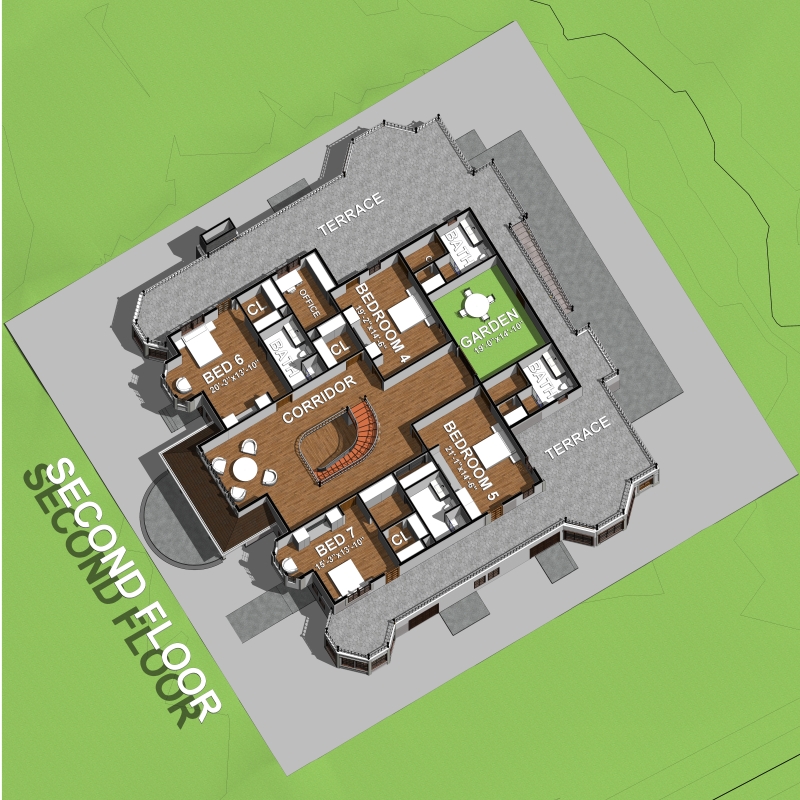

Venturing upstairs, you’ll find three more bedrooms, each with its own bathroom, providing luxurious comfort for everyone in the household. An office space adds versatility to the layout, offering a dedicated area for work or study. The second floor also opens up to a sizable garden, creating an ideal outdoor party and relaxation setting.

This Modern Victorian House Plan harmoniously blends classic charm with contemporary functionality, offering a stylish and comfortable living space that caters to the needs of a modern family. Welcome to a residence where elegance meets practicality, creating a haven for both everyday living and grand gatherings.

What is included in each Set option?

Initial PDF, Initial BIM Set or Initial CAD Set content:

• 3D Model (BIM) of the house. It has all main elements modeled - levels, walls, doors, windows, floors, furniture, etc. (for the Initial BIM Set only).

• Cover sheet with camera view of the house and a sheet list

• Floor plans (including basement where applicable), scale 1/4"=1'-0": dimensioned plans showing all main elements of the house - walls, floors, stair (where applicable), windows, doors, furniture, plumbing fixtures, etc.

• Roof plan, scale 1/4"=1'-0": dimensioned plan showing all roof slopes, gutters, eaves, skylights, exterior wall outline below, etc.

• Four exterior elevations, scale 1/4"=1'-0": showing all levels, eave lengths, roof slopes, doors and windows, etc.

• At least two Building Sections, scale 1/4"=1'-0": showing all levels, walls, floors, stair, roof slopes, eave lengths, doors and windows, etc.

Planning PDF, Planning BIM Set or Planning CAD Set content:

• 3D Model (BIM) of the house. It has all main elements modeled - levels, walls, doors, windows, floors, furniture, etc. (for the Initial BIM Set only).

• Cover sheet :

• Floor plans (including basement where applicable), scale 1/4"=1'-0": dimensioned plans showing all main elements of the house - walls, floors, stair (where applicable), windows, doors, furniture, plumbing fixtures, etc. These sheets also include a floor plan legend and notes as well as the main structural elements of the house.

• Roof plan, scale 1/4"=1'-0": dimensioned plan showing all roof slopes and materials, gutters, eaves, skylights, exterior wall outline below, etc. These sheets also include a roof plan legend and notes.

• At least two Building Sections, scale 1/4"=1'-0": showing all levels, walls, floors, stair, roof slopes, eave lengths, door and window locations, etc. These sheets also include a building legend and notes as well as the main structural elements of the house.

• Four exterior elevations, scale 1/4"=1'-0": showing all levels, exterior materials, eave lengths, roof slopes, door and window locations, etc. These sheets also include a elevation legend and notes.

What is NOT included:

• Architectural or Engineering Stamps
• General notes, City Notes
• Wall, Floor, Ceiling and Roof Assemblies
• Site Plan
• Mechanical and Plumbing
• Energy Calculations
• Structural Calculations and Plans
• Finish Floor Plans and Schedules
• Door and window schedules and types
• Light fixture, Accessories, Equipment and Plumbing Schedules
• Casework and millwork schedules and types
• Exterior, Interior, Window and Door Details

Design PDF, Design BIM Model or Design CAD Model content:

What is NOT included:

• Site Plan - has to be handled locally
• Architectural or Engineering Stamps - have to be handled locally
• Mechanical and Plumbing Drawings - have to be handled by your subcontractors
• Energy calculations - have to be handled locally if required
• Structural Calculations - have to be handled locally
• Framing Plans and details - have to be handled locally
• Wall, Floor, Ceiling and Roof assemblies
• Finish Floor Plans and Schedules
• City Notes
• Details

Construction PDF, Construction BIM Model or Construction CAD Model content:

How will I receive my ordered products?
Electronic delivery: URL for downloading the files will be provided after completing the purchase and approving the payment. Normally approving the payment takes 1-3 minutes. Order the product, complete the payment, wait few minutes and then go to My Account > Orders or click here to view your order. Verify that your order status is completed and then click "VIEW" to open the order details and download the purchased product. As well you will receive the download URL on your email address when your payment is approved.
